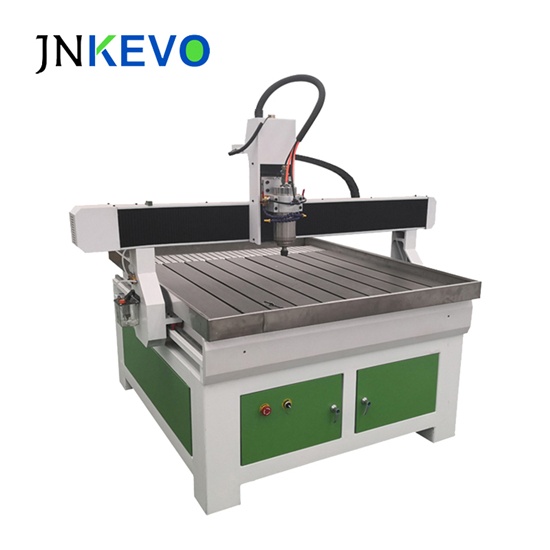

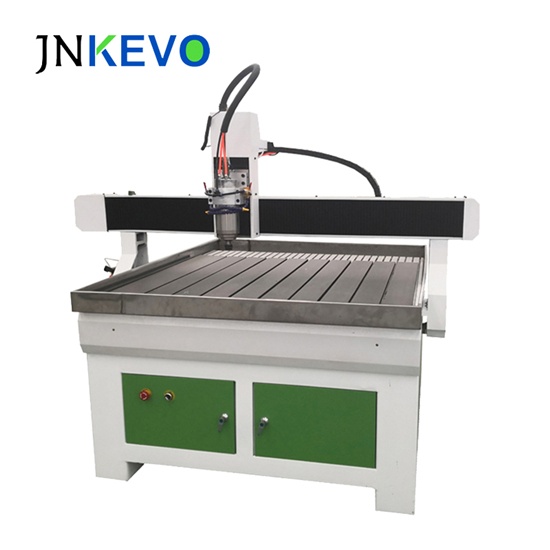

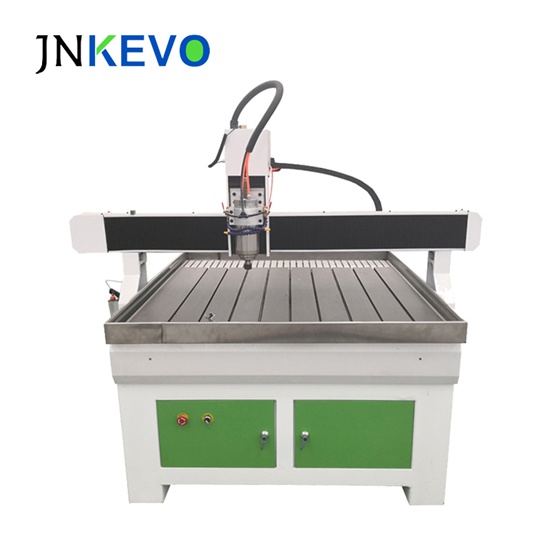

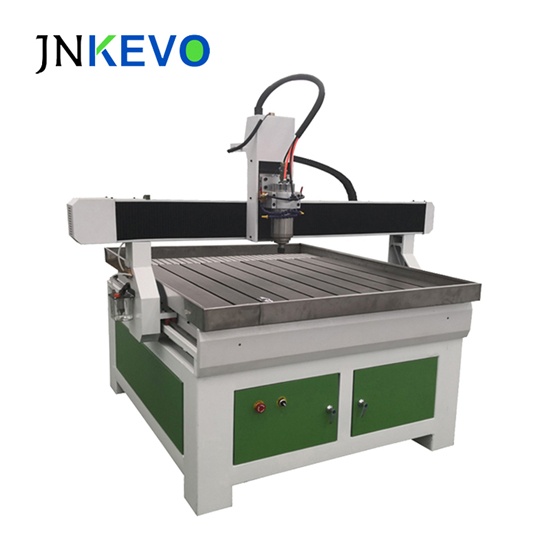

Advertising CNC Router KVA1212
Advantages:
1. 10-12mm industrial class square tube strong bed. You can use our Anben cnc router more than 10 years.
2. T-slot working table, pvc protection. We can also provide vacuum table for your choice
3. DSP A11 control, very easy operation and support offline which means that you can still operate even though meet power off.
4. Cast iron bed, strong and durable, long - term use without deformation.
Main Configurations
|
Working area
|
1200*1200*120mm
|
Spindle
|
1.5kw Chinese best brand water cooling
|
Control system
|
Nc studio
|
Software
|
Artcam
|
Stepper motor
|
450A
|
Leadshine driver
|
M542
|
Transmission
|
X,Y axis helical gear transmission, Z by Taiwan TBI ball screw
|
Rail guide
|
Taiwan Hiwin liner square rail
|
Soft limited switch
|
Hard limited switch
|
Table
|
T slot table/vaccum table
|
Inverter
|
Best inverter
|
Frame
|
Welded and heavy duty frame
|
Tool sensor, filter, cast steel motor box
|
New type design for the high stability
|
Taiwan imported best bearing holder
|
Lubrication system
|
Specifications
|
X,Y,Z working area
|
1200*1200*120mm
|
X,Y,Z traveling positioning accuracy
|
±0.01/100mm
|
X,Y,Z repositioning accuracy
|
±0.01mm
|
Table surface
|
T slot table/Vaccum table
|
Frame
|
Cast steel
|
X,Y,Z structure
|
X,Y: Taiwan rack pinion and gear transmission
Z: Taiwan TBI 3205 ball screw
|
Max rapid travel rate
|
30m/min
|
Max working speed
|
20m/min
|
Spindle power motor
|
1.5KW Chinese best brand water cooling spindle
|
Spindle speed
|
0-24000rmp/min
|
Drive motors
|
Leadshine stepper system
|
Working voltage
|
AC220V single phase
|
Command language
|
G code
|
Operating system
|
Nc studio
|
Interface
|
USB
|
Flash memory
|
128M ( U disk )
|
X,Y resolution
|
<0.01mm
|
Software compatibility
|
Artcam software
|
Running environment
|
Temperature: 0°C-45°C
Relative humidity: 30%-75%
|
Package size
|
2030x1830x2170mm
|
|
