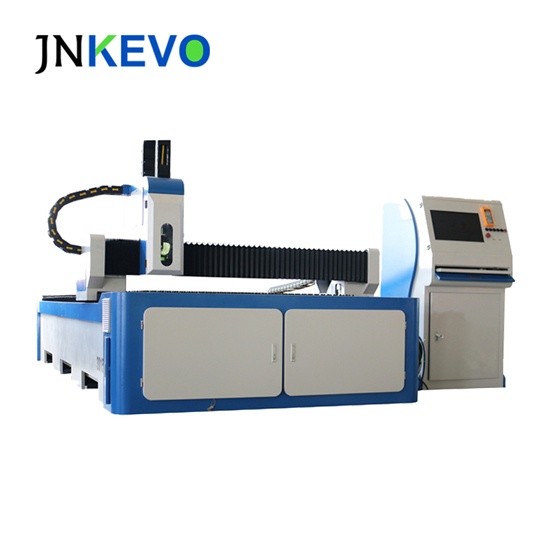

Fiber Laser Cutting Machine KVF3015
Fiber Laser Cutting Machine KVF3015 Fiber Laser Cutting Machine KVF3015 Fiber Laser Cutting Machine KVF3015 Fiber Laser Cutting Machine KVF3015
Product name : Fiber Laser Cutting Machine KVF3015
Product No. : 2019322215257
←[Previous Product]
Online Inquiry         Email Us

  Details:
Fiber Laser Cutting Machine KVF3015

Features

1.High accuracy rack gear transmission. Lower noises, stable and accurate coordinate movement.

2.Starfire control system made in Sino-US joint venture and Germany design software FastCAM with auto material saving function.

3.Hypertherm plasma power supply is optional together with high sensitive arc pressure adjuster. Self-adjusting can choose the best distance between plasma gun and working piece automatically to ensure high accuracy cutting



Application

Applicable material:

Cutting on Iron Plate, Aluminum sheet, Galvanized Sheet, Stainless,Titanium plates etc.

Applicable industries:

Cars, motorcycles, pressure vessels, chemical machinery, nuclear industry, general machinery, engineering machinery, steel structure, shipbuilding and other industries

Main Configurations

Working area

1500*3000mm

Voltage

380V 50HZ

FiberLaser source

Raycus/JPT/IPG

Laser power

300w/500w/750w/2000w

Control system

Weihong/Bochu

Laser head

Asmit laser cutting head

Control software

Cypcut

Rail guide

Taiwan linear rail

Motor and driver

Japanese Servo

Transmission

Gear rack transmission from Taiwan

Table

Sawtooth table

Cooling system

Water chiller

Parameters

Effective cutting width ( X axis )

1500mm

Effective cutting length ( Y axis )

3000mm

Type

Fiber laser

Power

300w/500w/750w/2000w

max.cutting speed

40m/min

fast moving speed

80m/min

Max.load of worktable

500kg/㎡

X,Y axis max.acceleration

1g

Working area

1500x3000mm

Weight of machine

5.5Tons

Motor

Japanese servo motors

Controller

Weihong

X,Y-axis positioning accuracy

 ±0.02mm

X,Y-axis repeat positioning accuracy

 ±0.01mm

Support software

CYPCUT

Graphic Format Supported

DXF/AI



Please feel free to CONTACT WITH US !
