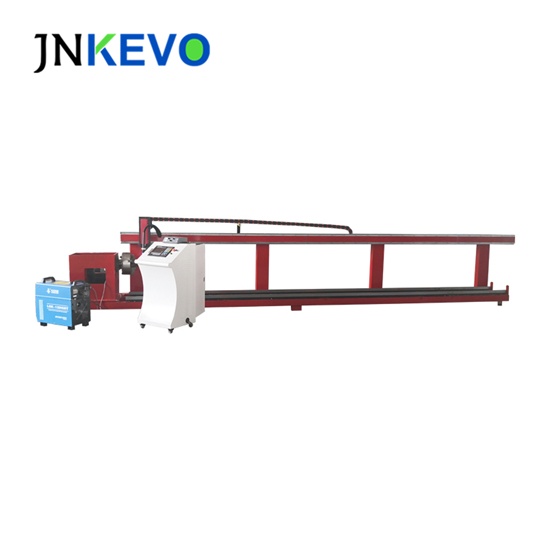

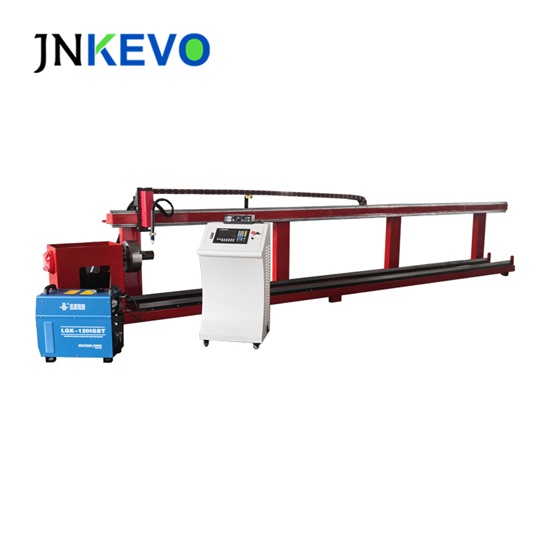

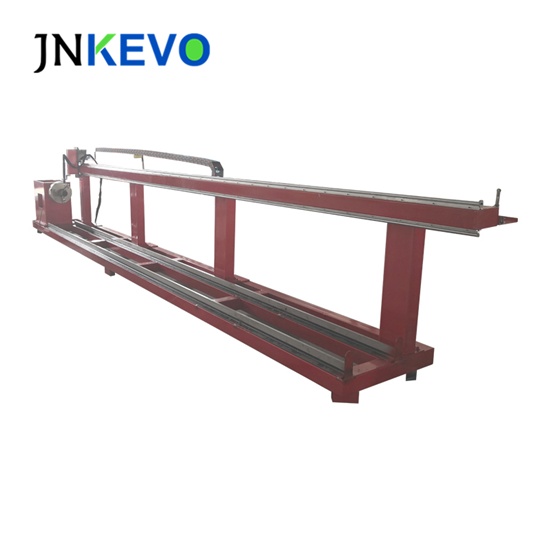

Plasma Tube Cutting Machine
Plasma Tube Cutting Machine Plasma Tube Cutting Machine Plasma Tube Cutting Machine Plasma Tube Cutting Machine
Product name : Plasma Tube Cutting Machine
Product No. : 2019107165345
←[Previous Product]
Online Inquiry         Email Us

  Details:
Plasma Tube Cutting Machine

Features

1.High accuracy rack gear transmission. Lower noises, stable and accurate coordinate movement.

2.Starfire control system made in Sino-US joint venture and Germany design software FastCAM with auto material saving function.

3.Hypertherm plasma power supply is optional together with high sensitive arc pressure adjuster. Self-adjusting can choose the best distance between plasma gun and working piece automatically to ensure high accuracy cutting



Application

Applicable material:

Cutting on Iron Plate, Aluminum sheet, Galvanized Sheet, Stainless,Titanium plates etc.

Applicable industries:

Cars, motorcycles, pressure vessels, chemical machinery, nuclear industry, general machinery, engineering machinery, steel structure, shipbuilding and other industries


Main Configurations

Working area

6000mm

Voltage

380V 3 phase

Plasma source

Chinese Huayuan / USA hypertherm

Plasma power

63/100/120/160/200A 45/65/85/105/125/200A

Control system

Shanghai Fangling control system

Torch height controller

THC

Control software

FASTCAM software

Round guide rails

Linear rail guide

Motor and driver

Leadshine driver and stepper motor

Table

Blade table

cutting nozzles

20 sets

Cutting speed

0-10000mm/min

Parameters

Diameter

300mm

Effective cutting length ( Y axis )

6000mm

Drive mode

Leadshine stepper drive

Control system

Shanghai Fangling controller

Lifting body

1 set

Plasma torch

1 set

File transmission

USB transmission

Cutting shape

Able to program and cut the steel plate parts with any plane shapes formed by straight lines and arcs

Software

Fastcam software

Plasma power source

63/100/120/160/200A 45/65/85/105/125/200A

Cutting thickness

0-30mm metal

Height regulating device

Arc voltage height

Cutting speed

0-10000mm/min

Cutting precision

±0.3mm

Support software

Fastcam / type3 / autocad / pro / CAXA etc

Working temperature

0°C-60°C

Relative humidity: 0-95%

Power supply voltage

380V ± 20%

Package size

3850*2300*1560mm
