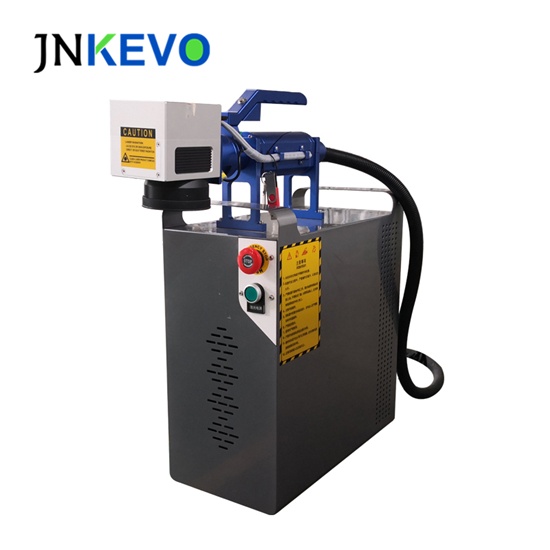

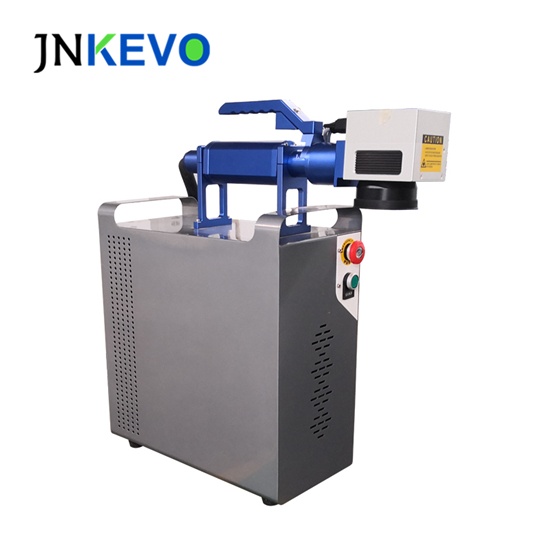

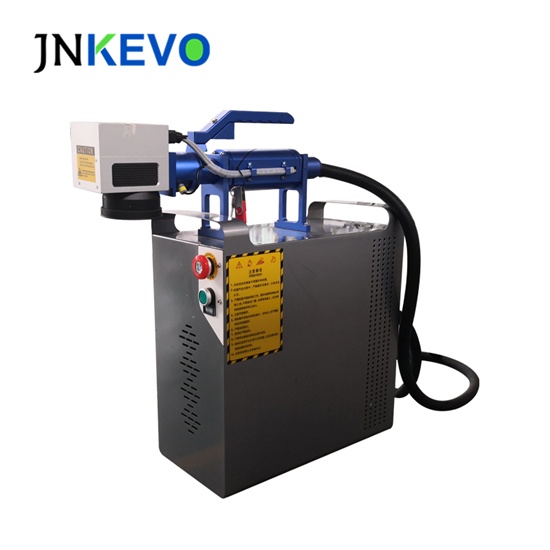

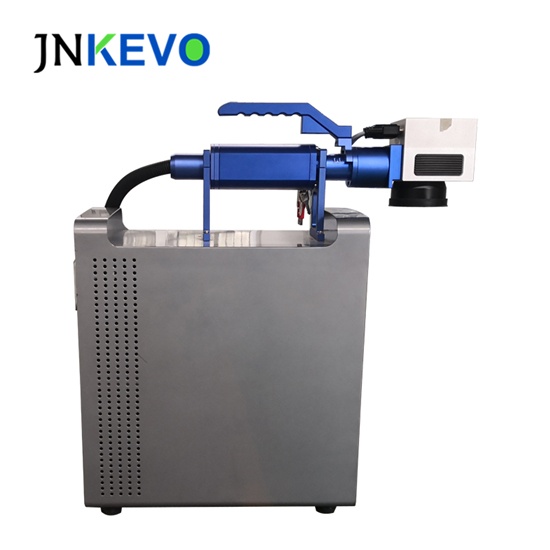

Handhold Fiber Laser Marking Machine
Features
1. 100,000 hours lifetime, compact design.
2. High speed 7000/s
3.Mini metal laser engraver adopting imported original IPG fiber laser from Germany(Domestic optional).
4. Laser beam quality of metal laser engraver is much better than traditional solid laser marking machine.
5. Imported galvanometer scanning system which makes the optical model nice and beam quality is excellent. Also without any problem even marking fast.
6. Humanized design, easy to operate.
7. Processing speed is 3 or 5 times faster than traditional marker.
Application
Mobile phone keypads, nonopaque-plastic keypads, electronic components, integrated circuits (IC), electrical appliances, communication products, sanitary wares, tool accessories, cutters, watches, glasses, jewelry, auto parts, boxes, bags, clasps, cookers, stainless steel products, etc
|
Main Configurations
|
|
Voltage
|
220V 50HZ
|
Laser power
|
30W/ CAS fiber laser source
|
|
Engraving area
|
70*70 / 110*110 / 150*150 / 175*175mm field lens for choose
|
Aluminum alloy column
|
480mm
|
|
Red point
|
Clear the working path
|
Marking head
|
Sino-Galvo brand galvanometer scanning head with inner red light
|
|
Filed lens
|
Wavelength brand
|
Control system
|
JCZ with the computer
|
|
Control software
|
EZCAD
|
Cooling system
|
Air cooling
|
|
Aluminum alloy plate table
|
Foot pedal
|
A set of wrench
|
Power line
|
|
Ruler for measuring focus
|
--
|
--
|
--
|
|
Parameters
|
|
Working area
|
70*70 / 110*110 / 150*150 / 175*175 / 200*200/300*300mm field lens for choose
|
Laser power
|
30W Raycus
|
|
Laser wavelength
|
1064mm
|
Response time
|
0.5ms
|
|
Frequency of pulse
|
20-80KHz
|
Max marking depth
|
<1mm
|
|
Marking speed
|
0-10000mm/s
|
Marking lines
|
1-10 lines ( in the marking area )
|
|
Minimum line width
|
0.1mm
|
Minimum character
|
0.15mm
|
|
Repeatability accuracy
|
±0.002mm
|
Resolution ratio
|
0.1mm
|
|
Marking content
|
Text, pattern, date, bar code etc
|
Operating system
|
Microsoft windows
|
|
Control software
|
EZCAD control software
|
Graphic format supported
|
Bmp,jpg,gif,tga,png,ti,ai,dxf,dst,plt etc
|
|
Unit power
|
≤0.5kw
|
Operating temperature
|
5°C-40°C
|
|
Relative moisture
|
≤90%, no fog
|
Supply voltage
|
220V / 50 HZ / 10A
|
|
