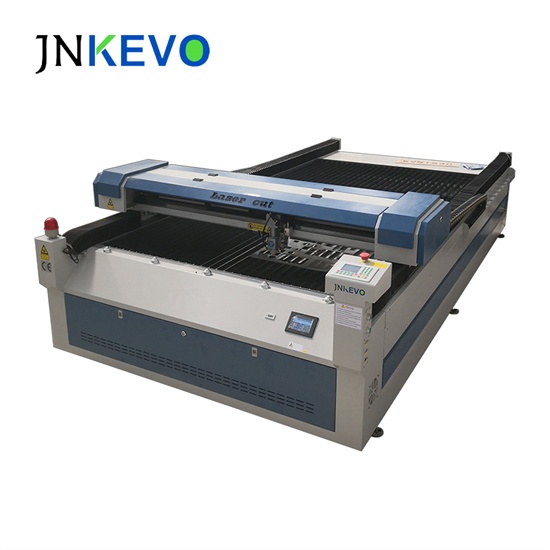

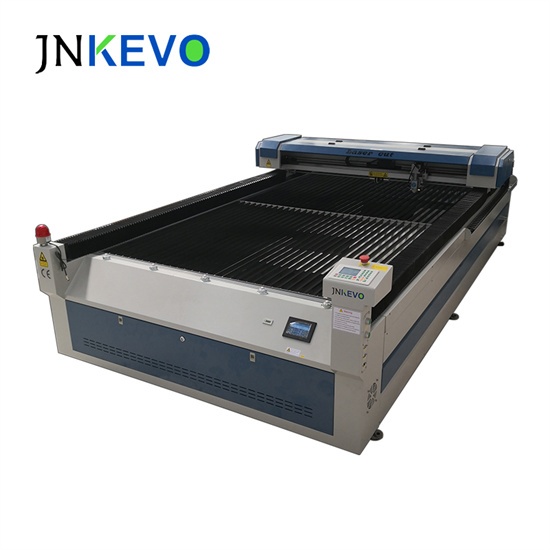

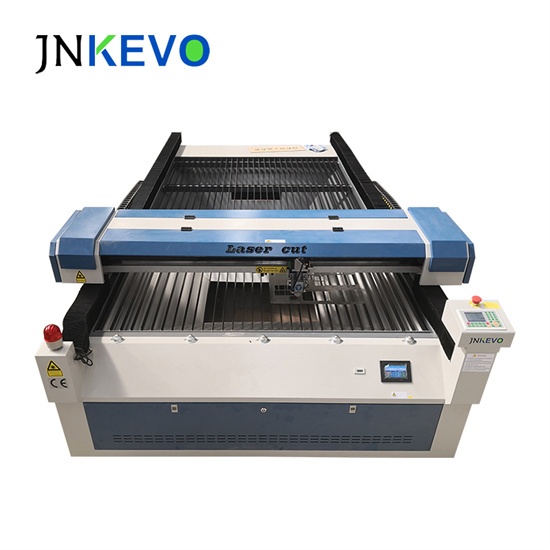

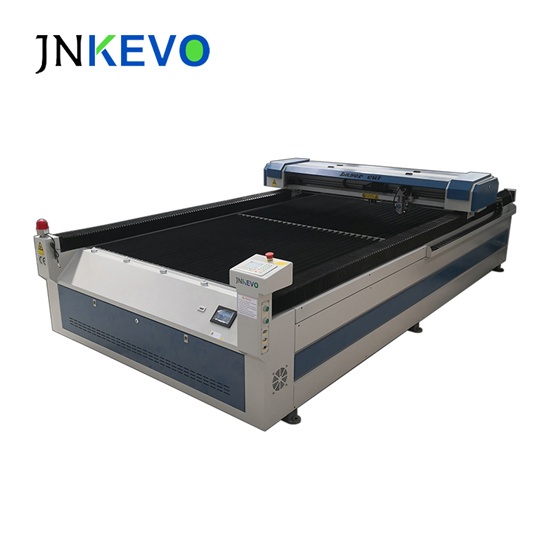

Metal & Non Metal Mixed Co2 Laser Cutting Machine 1530
Features
1. High speed laser cutting machine adopts the new high efficiency laser tube,the laser beam is more stable than the traditional type,and the life time of the laser tube is very long .
2. Compared with the ordinary laser machine,the series adopts more scientific design and high strength steel frame structure,which increase the fuselage strength more than 40% to prevent the machine from dsitortion during long term work
3. The humanized and mordem appearance shows Machinery consistent humanity idea,and it also makes the operation and maintenace quite easy.
4. Advanced Ruida control system,professional motion control chip,consecutive high speed curve cutting and the shortest path selection function improve the working efficiency a lot.
Application
metal cutting, electrical switch manufacturing, aerospace, food machinery, textile machinery, engineering machinery, locomotive manufacturing, agriculture and forestry machinery, elevator manufacture, special vehicles, household appliances, tools, processing, IT manufacturing, oil machinery, food machinery, diamond tools, welding, welding gear, metal materials, decoration advertising, laser surface treatment of foreign processing services, such as all kinds of machinery processing industry.
Main Configurations
|
Working area
|
1500*3000mm
|
Power supply
|
220V 50HZ
|
Laser tube
|
130/150w/280w
|
Cutting ability
|
0-3mm stainless steel, 0-3mm carbon steel, 0-30mm acrylic, 0-20mm wood
|
Professional laser head
|
Autofollowing laser head for metal and non-metal
|
Table
|
Blade table
|
Linear square rail
|
Original Taiwan imported
|
Belt
|
Dongfeng
|
Driver and motor
|
YAKO driver and stepper motor
|
Lens and mirrors
|
Original imported from Singapore
|
Control system
|
Original Ruida 6332M
|
Software
|
RDworksV8
|
Water chiller
|
Water chiller
|
Air pump
|
500W exhaust fan
|
Connecting and operating videos
|
Manual and U disk
|
--
|
--
|
Parameters
|
Working area
|
1500*3000mm
|
Laser power
|
130/150w/280w
|
Laser type
|
Co2 glass laser tube
|
Software
|
Metal cut
|
Machine dimension
|
1840*1360*1100mm
|
Engraving speed
|
1000mm/s
|
Cutting speed
|
500mm/s
|
Cutting thickness
|
Determined by materials
|
Position
|
4000DPI
|
Position system
|
Auotofollowing
|
Interface
|
USB
|
Resolution accuracy
|
±0.1mm
|
Support graphic format
|
DST, PLT, BMP, DXF
|
Gross power
|
1000W
|
Driving mode
|
DC 0.8A 24V stepper motor
|
Cooling mode
|
Circulation water cooling
|
Working voltage
|
AC220V / 50HZ or 110V / 60HZ or depend on customer
|
Operating temperature
|
0-45°C
|
Operating humidity
|
5-95%
|
Packing
|
Standard free fumigation wooden box for exportation
|
